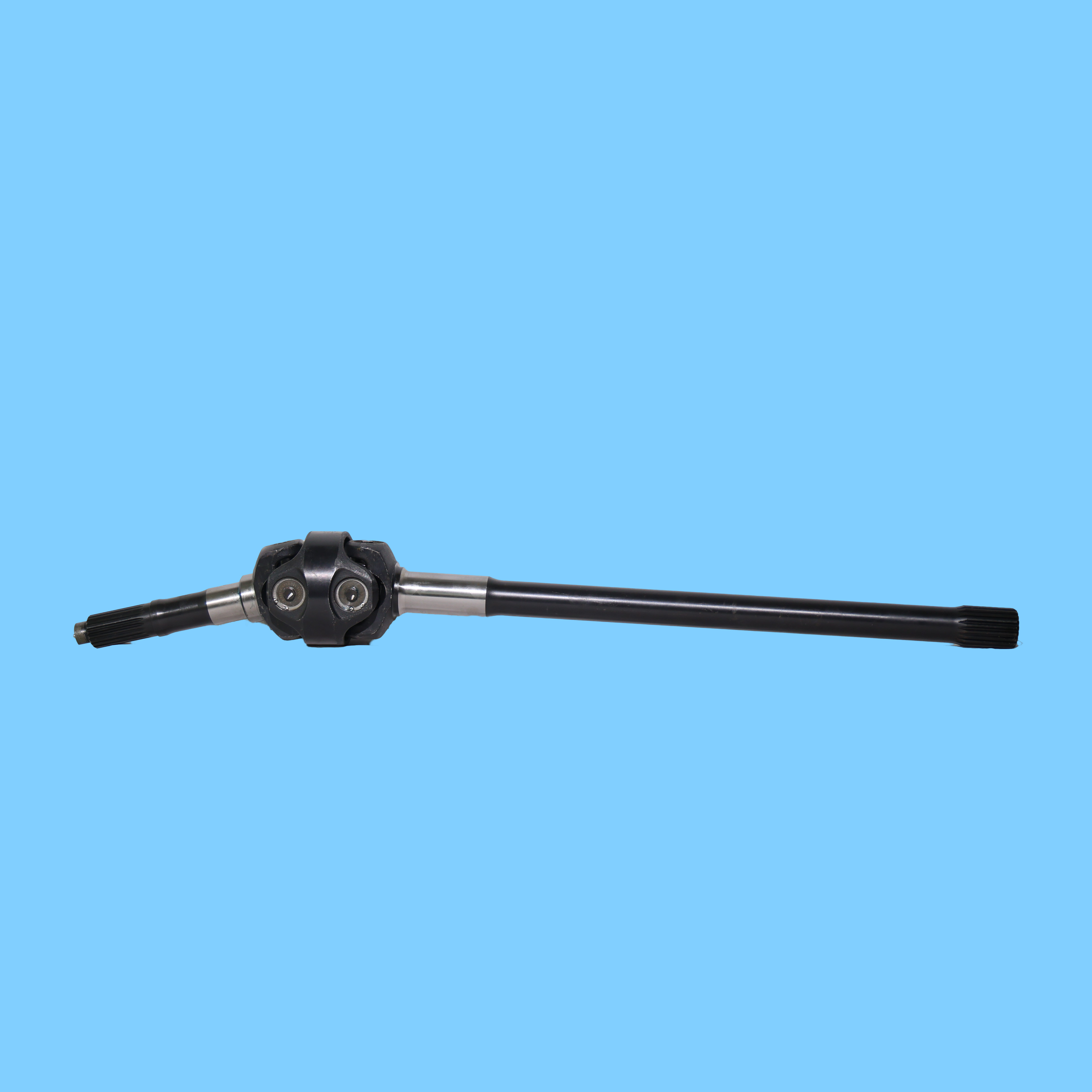

Grab Crane Universal Drive Shaft Easy To Install For Transmission System

1. Product Description
The grab crane wheel-side universal drive shaft assembly is a core driving component for grab cranes used in ports, docks, and ship loading/unloading scenarios. Specifically designed for multi-grab cooperative operations, it efficiently transmits power to the traveling wheel set while accommodating the dynamic stability requirements of frequent steering, sudden load changes, and complex terrain. Its high-torque, impact-resistant features and compact structure ensure precise control and continuous operation during heavy-load grabbing, rapid movement, and multi-angle adjustments, making it a key component for enhancing loading/unloading efficiency and safety.

2. Product Features

(1) Heavy-Duty Anti-Torsion Design
Forged from high-strength alloy steel and precision-ground with surface hardening treatment, it boasts a tensile strength of ≥1,200 MPa and a dynamic torque capacity of 30,000 N·m, suitable for full-load impact conditions.

(2) Multi-DOF Universal Drive
Equipped with a double universal joint structure, supporting a ±45° deflection angle to adapt to uneven tracks and dynamic wheel displacement caused by grab load swings.

(3) All-Weather Sealing Protection
Features a multi-lip redundant sealing system (rubber lip seal + dust cover) with IP68 protection, resistant to seawater corrosion, salt spray erosion, and dust ingress. Internally lubricated with long-lasting water-resistant grease, operable in temperatures from -45°C to 120°C.

(4) Dynamic Balance Optimization
Lightweight design combined with dynamic balance calibration (residual unbalance ≤5 g·mm) reduces high-speed vibration, with noise controlled at ≤70 dB(A), extending bearing service life.

3.Product Parameters

T: Rated Torque
T1: Failure Torque
αmax: Maximum Allowable Swing Angle
SΦD: Rotation Space
Φd: Outer Sleeve Diameter
L: Yoke back Distance

4.Applications

(1) Container Handling: Adapts to high-frequency start-stop cycles, heavy-load impacts, and multi-grab cooperative operations.

(2) Bulk Cargo Grab Operations: Resists dust pollution and vibration shocks during the loading/unloading of coal, ore, and other bulk materials.

(3) Shipyard Maintenance: Corrosion-resistant design for long-term use in humid marine environments.

(4) Multi-Crane Coordination: Enables precise synchronous control for collaborative handling of oversized cargo.

5. Customization: OEM customization supported.

6.Product Advantages

(1) Impact-Resistant Redundant Design: Reinforced spline shaft and flange connection structure withstands shock loads from sudden grab unloading.

(2) Quick Maintenance Compatibility: Modular assembly design allows online lubrication without disassembly, with replacement time ≤45 minutes.

      (3) Multi-Condition Adaptability: Customizable versions available, including low-temperature-resistant models (-40°C to +120°C).
