Rainproof Universal Joint Drive Shaft Assembly For Articulated Platform Tractors

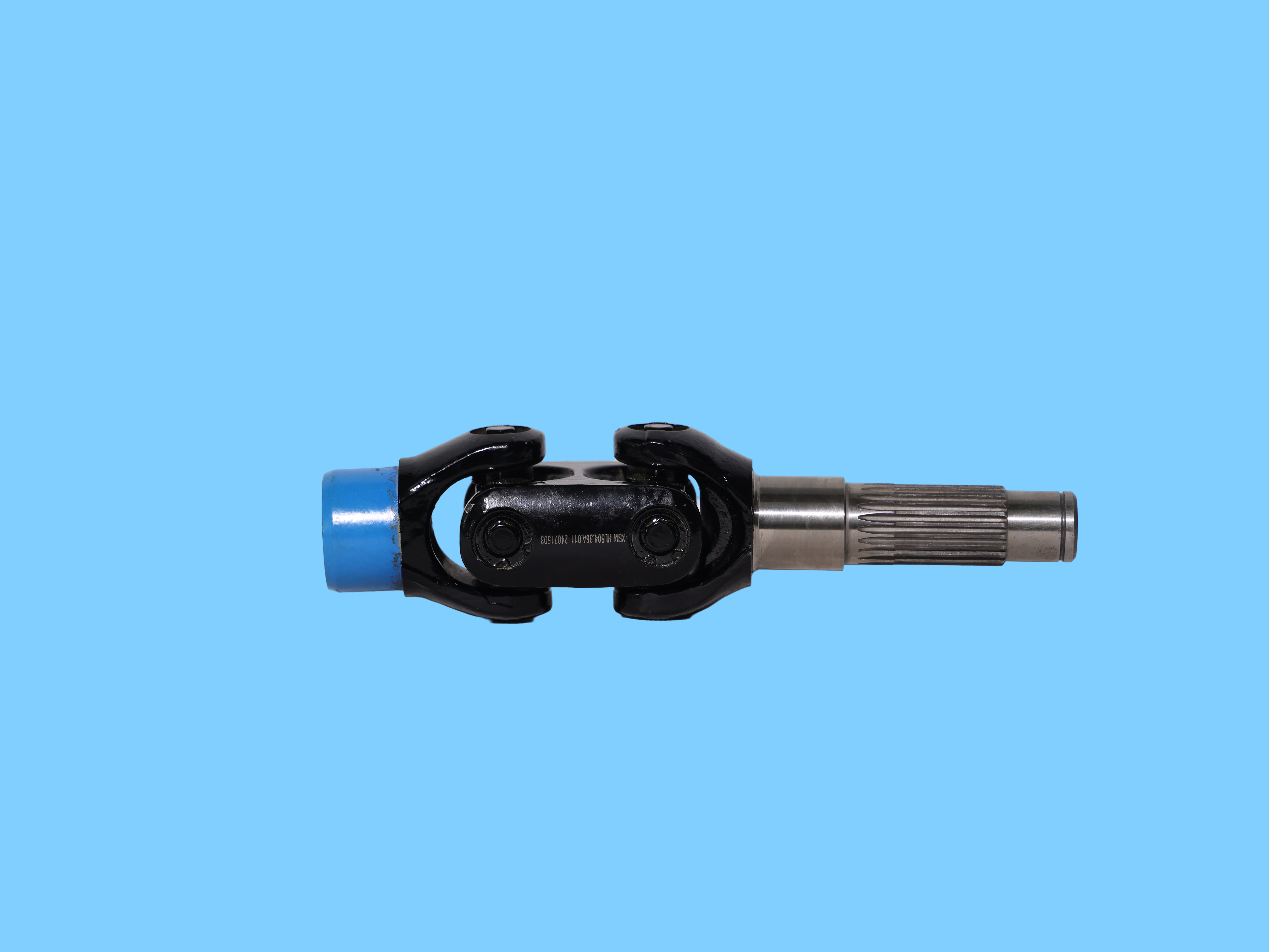

Double Universal Joint Assembly for Articulated Platform Tractors in Mountainous Terrain
The double universal joint assembly for articulated platform tractors in mountainous terrain is a specialized product designed specifically for such tractors. It breaks through the application limitations of traditional universal joints in articulated machinery, adopting a double-cardan joint structure. The two-joint linkage independently compensates for changes in angular misalignment between shafts in different directions, adapting to a maximum deflection angle of 50°, easily handling complex terrains such as mountains, steep slopes, and gullies. The main body is forged from high-strength alloy steel (such as 42CrMo) and undergoes precision heat treatment, with a surface hardness of HRC 58–62. Its load-bearing torque is increased to 10,000 N・m, capable of withstanding impact loads from frequent starts/stops and jolts during mountain operations. The power transmission efficiency reaches 98.5%, suitable for heavy-duty scenarios such as plowing, deep tillage, and material transportation.

1. Product Features:
① Strong torque transmission capability
② Support for large deflection angles
③ High transmission efficiency
④ Adaptability to harsh working environments

2. Product Parameters

3. Product Applications

· Mountain farmland operations

· Orchard management

· Forestry production

· Engineering auxiliary operations
