1. Product Overview

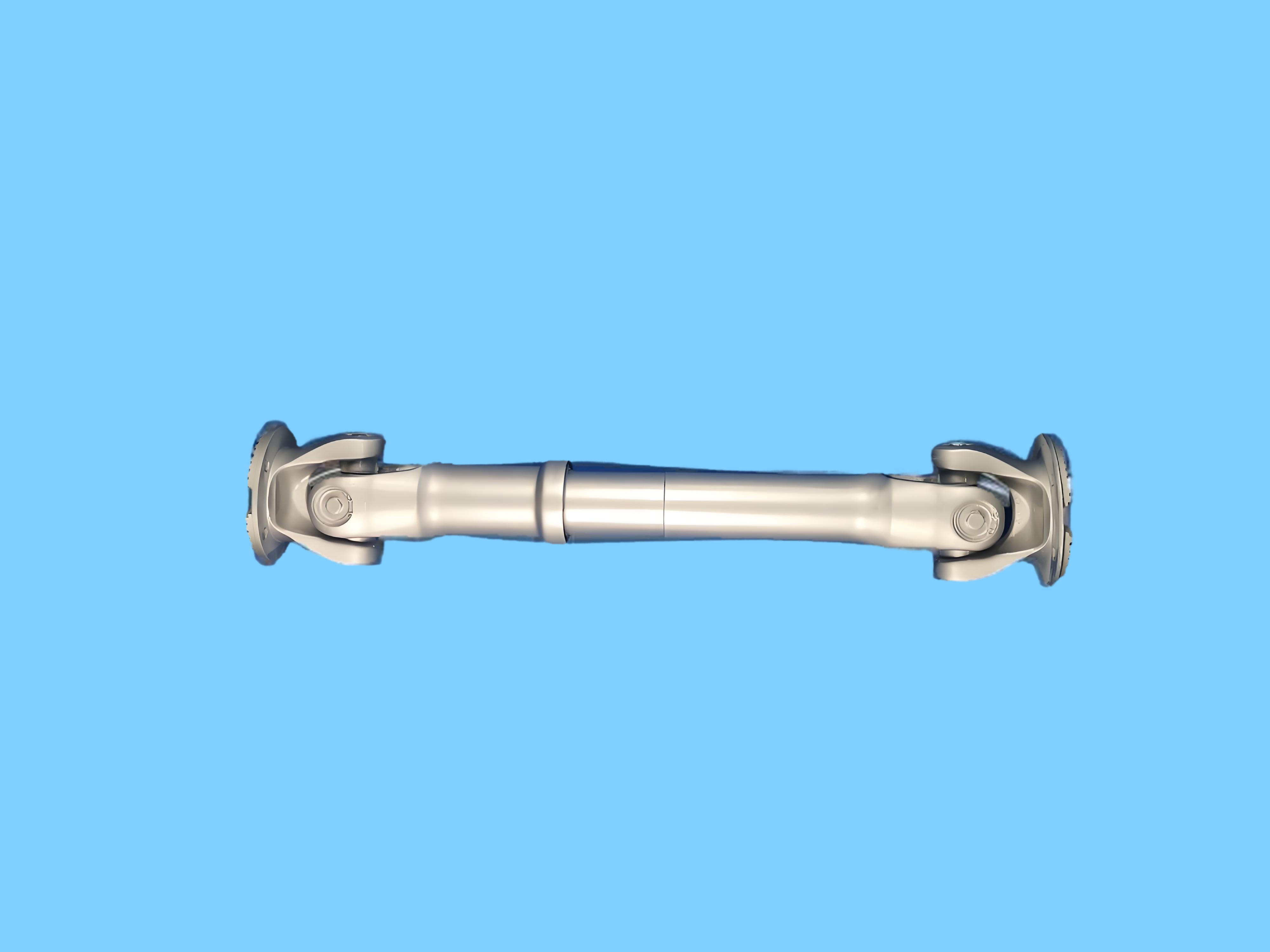

The Cardan shaft for wheel of trucks is a high-performance drivetrain component specifically designed for modern disconnected independent suspension axle systems. Featuring an innovative universal joint structure, it effectively addresses the challenge of power transmission at large angles in independent suspension systems. Through precision manufacturing processes and the use of high-quality materials, this product delivers exceptional drivetrain performance, outstanding reliability, and an extended service life for trucks.
2. Core Product Advantages
(1)Unique universal joint structure
Capable of achieving up to 47° angle
(2) Superior Drivetrain Performance
Forged from high-strength alloy steel with specialized heat treatment
Optimized cross-shaft design, achieving up to 99% transmission efficiency
(3) Exceptional Environmental Adaptability
Multi-layer composite sealing structure with up to five sealing edges
High-temperature resistance design, suitable for extreme environments ranging from -45°C to 120°C
3. Technical Specifications
| Parameter |
Specification |
Remarks |
| Applicable Axle Load |
1-20 tons |
|
| Maximum Torque |
1000-20000 N·m |
|
| Maximum Working Angle |
47° |
|
| Continuous Working Angle |
15° |
|
| Operating Speed |
0-3500 r/min |
|
| Weight |
25% lighter than comparable models |
|
4. Typical Applications
Forest fire trucks
Oilfield service trucks
Extreme sports trucks
5. Quality Assurance System
- Certified under IATF 16949:2016 Quality Management System
- Compliant with DIN, SAE, and other international standards
- Full-process digital quality traceability
- 100% non-destructive testing + torque inspection
6. Customized Service Solutions
We offer comprehensive custom development services:
Specialized dimensions and torque customization
Optimization for extreme environments
Lightweight design solutions
Vehicle system matching and calibration
7.After-Sales Service Commitment
⏰24/7 technical support
Choose our Cardan shaft for wheel of trucks to bring your disconnected independent suspension axle:
✓ More reliable power transmission
✓ Longer service life
✓ Lower maintenance costs
Contact our technical team now for a tailored solution!
